• AC/DC TIG welding -A alternating current (AC) and direct current (DC). Welding of almost all metals, such as steel, stainless steel, aluminum, copper and many more.
• 2 in 1 combination unit – TIG & MMA welding is possible up to 200A.
• IGBT Technology – Latest and most advanced transistor technology enables high performance welding! No transformer, no MOSFET, state of the art IGBT!

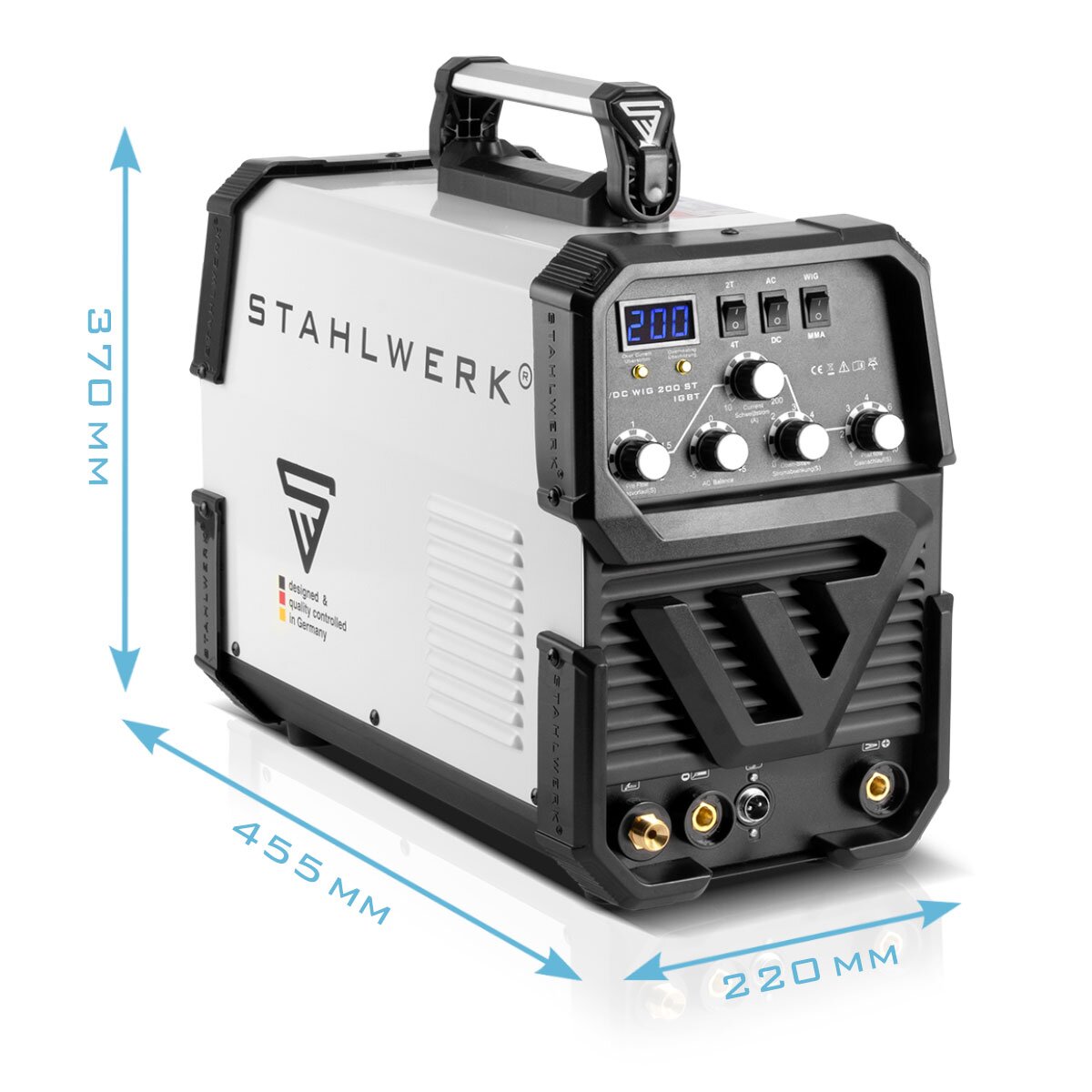

• Lightweight & compact design – only 11.5 kg weight and dimensions of 455 x 220 x 370 mm. Inovative IGBT transistors save space and weight compared to old MOSFET technology. No more heavy carrying!
• HF ignition – enables non-contact ignition and provides much better welding results. No LIFT ARC, no strike ignition!
• Highest Efficiency & Power – Single phase AC power (230V) powers the unit and allows output power of true 200 amps.
• Smart Cooling & Overheat Protection – State-of-the-art technology, built-in overheat protection, and high performance cooling allow for maximum power retrieval.

Karakteristike i prednosti

• 2T/4T (TIG) – determines mode control and provides advanced control over current flow. In 2T mode, high frequency (HF) ignition remains active until the button on the torch is released. In 4T mode, pressing and releasing the button once ignites the arc. After pressing and releasing again, the ignition is terminated. Some functions, such as current reduction, are only possible in 4T.
• Current reduction – prevents the formation of shrink marks (end craters) at the end of the weld.
• Gas pre-run and gas post-run (TIG) – protect the tungsten electrode from excessive wear and protect the weld seam from oxidation. The parameters can be set individually and separately. They specify how long gas should flow before and after ignition.
• AC-Balance – is a variable setting between breaking the oxide layer (-) and a deeper firing (+). This helps to act on properties of different materials and alloys.
• Hotstart – Automatic voltage increase at start-up for better ignition results.
• Anti-Stick – Automatic shutdown of welding current when the electrode sticks, allowing easy removal.
• TIG (Tungsten Inert Gas) – Shielded metal arc welding with inert/inactive gases such as Argon 4.6 (99.996%). An arc is created between the tungsten electrode and the workpiece in an argon bell. This melts the material and any filler material added. A weld seam is formed.
• MMA electrode welding / ARC welding – a universal welding process. An arc causes the electrode to melt, forming the weld. No shielding gas is required.

Note: The unit is not intended for use in residential areas where power is supplied by a public low-voltage power system. It may be difficult to ensure electromagnetic compatibility in these areas due to both conducted and radiated interference.
